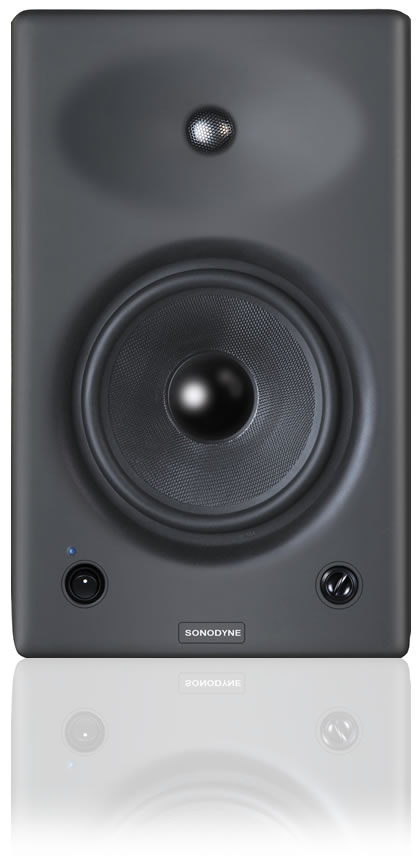

The New SM200Ak is 2 way studio reference monitor with exceptional frequency bandwidth and sound pressure level making it an ideal solution for broadcast, post-production and professional studios.
The SM200Ak enclosure combines the best of two cabinet worlds: wood and aluminium. The sturdy aluminium die cast baffle ensures that the 8" Kevlar LF and the 1" metal dome HF are firmly mounted and vibration is minimized. Additionally the curved edges of this solid baffle also minimize diffraction. This baffle also features an integral waveguide for the HF, resulting in precise imaging and exceptional on and off axis response.
The inbuilt low distortion amplifier module continuously provides 150 watt to the HF and 100 watt to the HF and feature room compensating bass and treble tilts useful in difficult acoustical environments.
Sonodyne SM200Ak Specifications
| Description | 2 way active monitor |
| Transducer Complements |
LF: Magnetically shielded 8" Kevlar cone woofer in die-cast chassis |
| Enclosure Type | Vented, through rear firing aerodynamic port |
| System | |

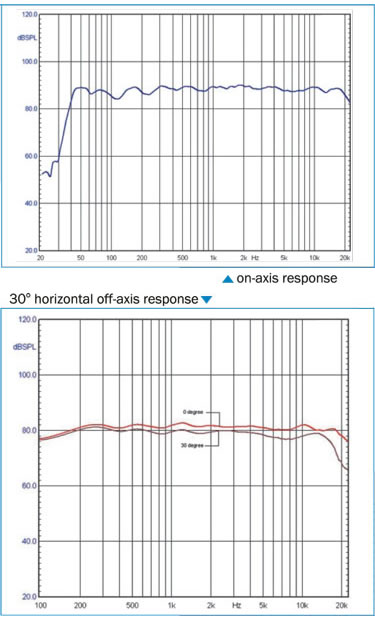

| Overall Freq Response | 40 Hz ~ 22 kHz (+/- 2 dB) |
| Useable Freq Response | 35 Hz ~ 30 kHz (- 10 dB) |
| Max Long Term SPL, Half Space | 112 dB |
| Hor Beam Width | 92 deg. (avg. between 5~20 kHz) |
| Vert Beam Width | 73 deg. (avg. between 5~20 kHz) |
| THD (@95 dB SPL) |
50 Hz ~ 200 Hz < 3% > 200 Hz < 1% |
| Amp & Crossover | |
| Amp Power Before Clipping | LF: 150 W, HF: 100 W |
| S/N Ratio (at unity gain) | > 90 dB, referred to full output |
| AMP THD @ Rated Power | < 0.04 % |
| Input | Fully balanced through XLR sockets |
| Input Level for 90 dB SPL at 1M | - 22 dBU |
| Gain Control Range | +/- 6 dB with respect to U position |
| Volume Control Range | > 70 dB |
| CMRR | > 65 dB |
| Crossover | 4th order Linkwitz Riley, 1.7 kHz |
| Bass Tilt | -2 dB, -4 dB, -6 dB @ 100 Hz |
| Bass Roll Off | 70 Hz, 6 dB/ octave |
| Treble Tilt | - 2 dB @ 15 kHz |
| Controls Front | Power switch and vol. control |
| Controls Rear | Gain control, 4 DIP switches for bass/ treble tilts & bass roll-off |
| Indicator | Power ON/OFF |
| Protection | Over current, overheat, RFI, switch on/off transients |
| Power Req. | 230 V AC, +/-10%, 50 Hz; 115V optional |
| Power Consumption | 400 VA Max. |
| Mechanical | |
| Cabinet Material | Die-cast aluminum front baffle with 15 mm MDF sides |
| Finish | Black texture |
| Dimensions. (H x W x D) | 314 x 430 x 322 mm |
| Net Weight | 17.8 Kg |
