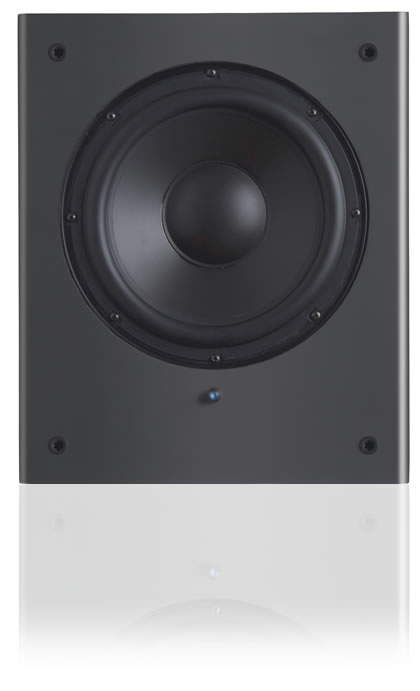

The Sonodyne SLF210 meets the .1 channel need and is the perfect partner for the SM50Ak and SM100Ak for your 2.1 and/or 5.1 set up. It features a high excursion 10" subwoofer device with LF extension to 30 Hz powered by a 200 Watt Sonodyne Class D amplifier. The Sonodyne SLF210 also features an inbuilt limiter which ensures that the transducer always receives unclipped signals. The result is maximum dynamics, and longevity.

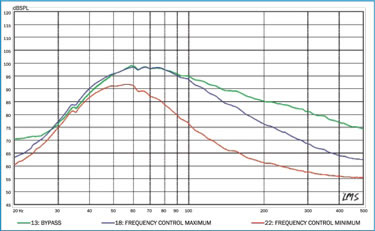

The Sonodyne SLF210 rear panel controls include (noise-free) on/ off, level, variable frequency (50~150 Hz), phase switch (0 deg., 180 deg.), and crossover defeat.
Sonodyne SLF210 Specifications
| Description | Front firing vented subwoofer |
| Freq. response (-6dB) | 35 Hz ~ crossover frequency |
| Useable freq. response | 30 Hz (-10 dB) |
| Transducer Complements | 1 x 10" high excursion subwoofer |
| Max. SPL | 112 dB |
| Amplifier Power | 200 W |
| Amplifier Type | Class D |
| Amplifier THD | < 0.05% at rated power |
| Input Level For 90dB SPL 1W/1M | -27.5 dBU at 80 Hz, frequency at mid and level control at max. |
| Switches |
1) Phase switchable between 0 and 180 deg. 2) Bypass for defeating crossover
3)Power on/off |
| Controls |
1) Crossover frequency: 50 ~ 150Hz
2) Subwoofer level |
| Input | Fully balanced input through XLR socket and link XLR socket |
| Enclosure | 15 mm MDF |
| Finish | Black texture paint |
| Grill | Black grill cloth stretched over wooden frame |
| Power Source | 230V AC, 50Hz, via fused IEC inlet; 115V optional |
| Power Consumption | 200 VA Max. |
| Dim (HxWxD) | 410 x 341 x 418 mm |
| Net Weight | 18.5 Kg |
