The award winning Sonodyne SM100Ak has an extended LF response compared to its smaller sibling, the SM50Ak and also offers a wider sweet-spot. This, in conjunction with a higher SPL, readies it for the more demanding applications such as multi-channel audio monitoring in larger rooms.
We have also found that many musician-engineers prefer the tonal quality and 'musicality' of these rock-solid speakers. Magnetically shielded it may be placed beside video monitors.
The Sonodyne SM100Ak is perfect for recording, mixing, post-production and broadcast applications.
The SM100Ak can be used with the SLF210 Sub Woofer for 2.1 and 5.1 applications.
Sonodyne SM100Ak Specifications
| Description | 2 way nearfield active monitor |
| Transducer Complements |
LF : Magnetically shielded 6.5" Kevlar cone woofer HF : Magnetically shielded 26mm silk dome ferrofluid cooled tweeter with integral waveguide |
| Enclosure Type | Vented, through twin front-firing aerodynamic port. |

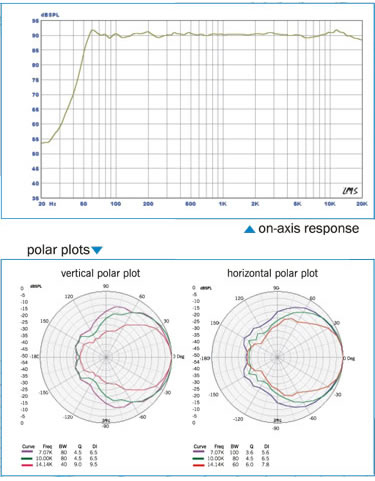

| Overall Freq.Response | 60 Hz ~ 22 kHz, (± 3 dB) |
| Usable Freq. Response | 50 Hz ~ 30 kHz (± 10 dB) |
| Max. Long Term SPL, Half Space | 108 dB at 1m |
| Horizontal Beam Width | 85° (Averaged between 5 ~ 14 kHz) |
| Vertical Beam Width | 80° (Averaged between 5 ~ 14 kHz) |
| Total Harmonic Distortion | 65 Hz ~ 200 Hz < 3 % |
| (at 95 dB SPL) | > 200 Hz < 1 % |
|
Amp. Power
Before Clipping |
LF: 80 Watts
HF: 40 Watts |
| S/N Ratio (at Unity Gain) | > 90 dB, referred to full output |
| Amp. THD at Rated Power | < 0.04 % |
| Input Level for 90 dB SPL at 1m | - 25 dBU |
| Gain Control Range | ± 6 dB, with respect to U position |
| Volume Control Range | > 70 dB |
| CMRR | > 65 dB |
| Crossover | 4th Order, Linkwitz Riley, 1.8 kHz crossover freq. |
| Bass Tilt | -2 dB, -4 dB, -6 dB @ 80 Hz |
| Bass Roll-Off | 80 Hz, 6 dB/ Octave |
| Treble Tilt | - 2 dB @ 15 kHz |
| Controls- Front Rear |
Power Switch & Volume Control Gain control, 4 dip switches for bass/ treble tilts and bass roll-off |
| Indicator | Power ON /OFF |
| Protection | Over current, over heat, Switch ON/OFF transients |
| Power | 230 V AC, ± 10% , 50 Hz |
| Power Consumption | 200 VA Max. |
| Cabinet Material | Die-cast aluminium |
| Finish | Black texture |
| Dimensions (WxHxD) | 230 mm x 335 mm x300 mm |
| Internal Vol./ Net Weight | 13 Litres/ 10.5 Kg |
